DL32

Digital mixing has revolutionized virtually everything in the live-entertainment production workflow. The DL32 is the perfect solution for connecting the onstage talent with your Front of House (FOH) console, and the rest of the world – the I/O packed and highly affordable DL32 digital stage box. The DL32 provides 32 Midas PRO Series remote-controllable mic preamps, plus 16 balanced analog XLR returns at the stage end – and all it takes is a single Cat 5e cable. While Klark Teknik, the industry-leader in high-end digital audio processing, invented the AES50 SuperMAC technology that made it all possible – our superb scale of production makes the DL32 so very affordable.

MIDAS - The Legend in Sound Quality

Ever since our formation in the 1970s, we have had a long history of innovation and leadership in the world of audio mixing consoles. Employed by the most famous touring acts and installations worldwide, legendary consoles, such as the XL4 and Heritage H3000 have quickly become industry standards.

We have earned an impeccable reputation due to our no-compromise approach to audio and build quality, and in particular for our Award-winning Mic Preamps, which are considered by industry experts as the industry’s best-sounding designs. Building on this legacy, the XL8 and PRO Series of Live Mixing Systems continue this great heritage of Award-winning audio quality.

Massive Connectivity

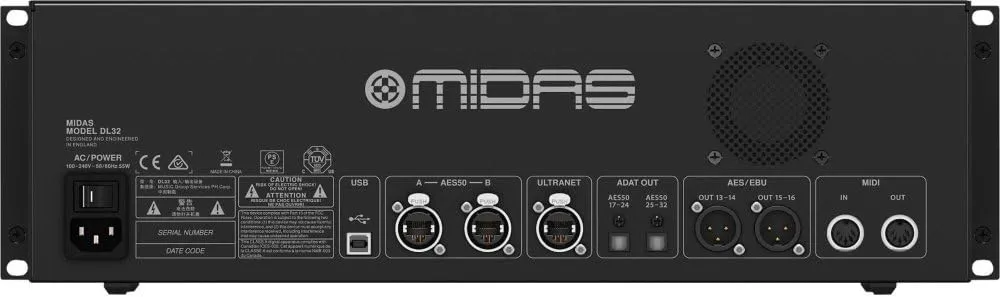

When used as part of a complete M32 system, two DL32 Stage Boxes can be cascaded via the built-in AES50 ports, providing connectivity for up to 64 mic/line inputs, 32 balanced outputs and the ULTRANET port allows direct connection to Turbosound iQ Series loudspeakers and the Behringer POWERPLAY P-16 Personal Monitoring System – which can feed up to 48 individual monitor mixers. We also included 2 optical ADAT sockets and AES-3 (AES/EBU) for connecting to outboard devices, a convenient USB port for system updates via your PC – plus MIDI I/O for lighting systems and sound module control.Midas DL32 Stage Box Features:

• Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles
• 32 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage
• 16 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
• AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible
• Up to 328' of networking capability via a single lightweight Cat 5e cable (not included)
• Dual AES50 ports let you cascade up to 2 DL32 units together for an up to 64-in/32-out system
• Precise LED metering plus 7-segment displays let you keep a close eye on your levels
• Headphones output assignable to any of the inputs/outputs for on-stage monitoring
• Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications
• Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
• MIDI In/Out provide bidirectional communication between FOH console and on-stage MIDI devices
• Durable yet compact, all-steel 3U rack-mount chassis provides flexible mounting
